Introduction
Tropical cyclones signify a hazard to life, property, and the economies of communities. Researchers who research tropical cyclones have targeted on distant observations utilizing space-based platforms to picture these storms, inform forecasts, higher predict landfall, and enhance understanding of storm dynamics and precipitation evolution – see Determine 1.
The tropical cyclone group has leveraged knowledge from Earth observing platforms for greater than 30 years. These knowledge have been retrieved from quite a few devices together with: the Superior Baseline Imager (ABI) on the Nationwide Oceanic and Atmospheric Administration’s (NOAA) Geostationary Operational Environmental Satellite tv for pc (GOES)–Collection R satellites; the Tropical Rainfall Measuring Mission (TRMM) Microwave Imager (TMI); the International Precipitation Measurement (GPM) Microwave Imager (GMI); the Particular Sensor Microwave Imager/Sounder (SSMIS) on the Protection Meteorological Satellite tv for pc (DSMP) satellites; the Superior Microwave Scanning Radiometer (AMSR-E) on Aqua; AMSR2 on the Japan Aerospace Exploration Company’s (JAXA) International Change Remark Mission–Water (GCOM-W) mission; the Superior Microwave Sounding Unit (AMSU) on Aqua and the Superior Expertise Microwave Sounder (ATMS) on the NASA–NOAA Suomi Nationwide Polar-Orbiting Partnership (Suomi NPP), NOAA-20, and NOAA-21; the Average Decision Imaging Spectroradiometer (MODIS) on NASA’s Terra and Aqua Platform; and the Seen Infrared Imaging Radiometer Suite (VIIRS) on Suomi NPP, in addition to on the primary two Joint Polar Satellite tv for pc System (JPSS) missions (i.e., NOAA-20 and NOAA-21).
Regardless of having a long time of information at their disposal, scientists lack knowledge from devices positioned in low-inclination orbits that present extra frequent views inside tropical areas. This limitation is particularly pronounced within the tropical and subtropical latitudes, which is the place tropical storms develop and intensify.

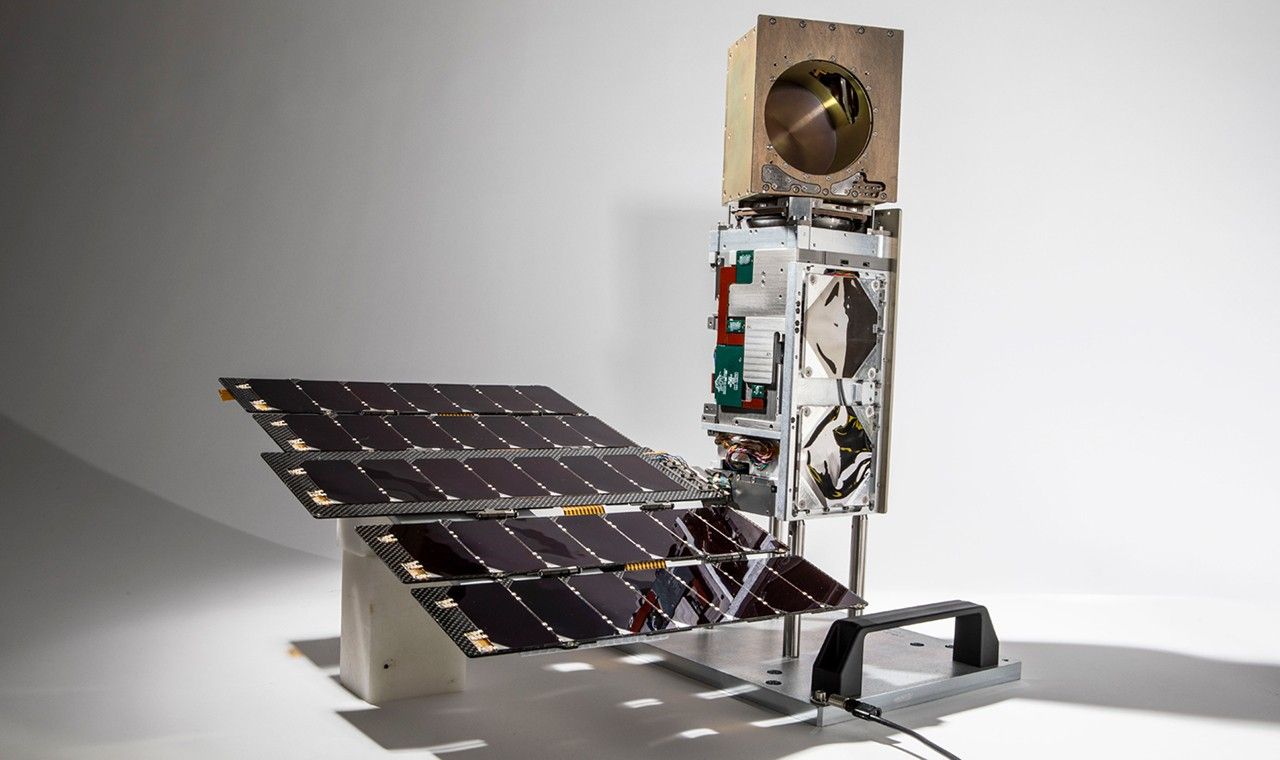

The NASA Time-Resolved Observations of Precipitation structure and storm Intensity with a Constellation of Smallsats (TROPICS) grew from the Precipitation and All-weather Temperature and Humidity (PATH) to deal with a necessity for acquiring three-dimensional (3D) temperature and humidity measurements in addition to precipitation with a temporal revisit price of 1 hour or higher – see Determine 2. TROPICS makes use of a number of small satellites flying in a rigorously engineered formation to acquire speedy revisits of measurements of precipitation construction inside the storms, in addition to temperature and humidity profiles, each inside and out of doors of the storms, together with the depth of the upper-level heat core. As well as, the devices present a median revisit time of about one hour. The information gathered additionally informs modifications in storm observe and depth and offers knowledge to enhance climate prediction fashions.
The imagery is targeted on interior storm construction (close to 91 and 205 GHz), temperature soundings (close to 118 GHz), and moisture soundings (close to 183 GHz). Spatial decision at nadir is roughly 24 km (16.8 mi) for temperature and 17 km (10.6 mi) for moisture and precipitation, masking a swath of roughly 2000 km (1243 mi) in width. Researchers can use TROPICS knowledge to create a whole lot of high-resolution photographs of tropical cyclones all through their lifecycle.
This text offers an summary of the 2 years of profitable science operations of TROPICS, with a deal with the suite of geophysical Degree-2 (L2) merchandise (e.g., atmospheric vertical temperature and moisture profiles, instantaneous floor rain price, and tropical cyclone depth) and the science investigations ensuing from these measurements. The entire article, out there within the Proceedings Of The IEEE: Special Issue On Satellite Remote Sensing Of The Earth, offers extra complete particulars of the outcomes.
From Pathfinder to Constellation
A single TROPICS satellite tv for pc was launched as a Pathfinder automobile on June 30, 2021, aboard a SpaceX Falcon 9 rideshare right into a Solar-synchronous polar orbit. TROPICS was initially conceived as a six-satellite constellation, with two satellites launched into every of three low-inclination orbits. Regrettably, the primary launch, on June 22, 2022 aboard an Astra Rocket 3.3, failed to achieve orbit. Whereas unlucky, the mission might nonetheless proceed with 4 satellites and meet its baseline revisit price requirement (with no margin), with the silver lining of an additional yr of information gathered from TROPICS Pathfinder that allowed the tropical cyclone analysis group to organize and check communications methods and knowledge processing algorithms earlier than the launch of the 4 remaining constellation satellites. These satellites have been deployed on two separate launches – Might 8, 2023 and Might 26, 2023 aboard a Rocket Lab launch automobile. The early testing accelerated calibration and validation for the constellation.
Gathering Information Vital to Understanding Tropical Cyclones
Tropical cyclone investigations require speedy quantitative observations to create 2D storm construction info. The 4 radiance knowledge merchandise within the TROPICS constellation [i.e., antenna temperature (L1a), brightness temperature (L1b), unified brightness temperature, and regularized scan pattern and limb-adjusted brightness temperature (L1c)] penetrate under the cloud prime to assemble knowledge at higher frequency for a decrease price than present operational methods. The constellation knowledge has been used to guage the event of the nice and cozy core and evolution of the ice water path inside storms – two indicators of storm formation and subsequent modifications in depth.
The upper-level heat core is vital to tropical cyclone improvement and intensification. Precipitation could instigate speedy intensification via convective bursts which might be characterised by increasing chilly cloud tops, rising ice scattering, lightning, and towers of intense rain and ice water which might be indicative of robust updrafts. TROPICS frequencies present a wealth of data on scattering by precipitation-sized ice particles within the eyewall and rainbands that may permit for researchers to trace the macrostructure of convective bursts in tropical cyclones throughout the globe. As well as, TROPICS knowledge helps make clear how variations in environmental humidity round tropical cyclones have an effect on storm construction and intensification.
Higher-level Heat Core
Evaluation of the upper-level heat core of a tropical cyclone reveals useful details about the storm’s improvement. The tropical cyclone group is utilizing knowledge from TROPICS to know the processes that result in precipitating ice construction and the position it performs in intensification – see Determine 3. Whereas the nice and cozy core has been studied for many years, TROPICS offers a brand new alternative to get high-revisit price estimates of the atmospheric vertical temperature profile. By pairing the temperature profile with the atmospheric vertical moisture profile, researchers can outline the relative humidity within the lower-to-middle troposphere, which is important to understanding the impression of dry environmental air on storm evolution and construction.
Ice Water Path and Precipitation
One other variable that helps to supply perception into the event of tropical cyclones is the ice water path, which particulars the whole mass of ice current in a vertical column of the ambiance and is due to this fact helpful for characterizing the construction and depth of those storms. Growing ice water path can mirror strengthening convection inside a storm and thereby be an indicator of seemingly intensification – see Determine 4. TROPICS is the primary spaceborne sensor geared up with a 205-GHz channel that, together with the standard 89, 118, and 183 GHz channels, is extra delicate to detecting precipitation-sized ice particles. As well as, the TROPICS Precipitation Retrieval and Profiling Scheme (PRPS) offers an estimate of precipitation. This scheme is predicated solely on the satellite tv for pc radiances linked to precipitation charges, which can be utilized to generate merchandise throughout time scales, from near-real-time to climatological scales.
Collaborations and TROPICS Information in Motion
To judge and improve the info gathered by TROPICS, the TROPICS utility crew enlisted the help of operational climate forecasters that shaped the TROPICS Early Adopters program. In 2018, this system linked the applying crew to stakeholders fascinated by utilizing TROPICS knowledge for analysis, forecasting, and choice making. This collaboration improved approaches to diagnose and predict tropical cyclones. For instance, the Nationwide Hurricane Heart (NHC) discovered that the brand new TROPICS channel at 204.8 GHz supplied the perfect strategy to seize convective storm construction, adopted by the extra historically used 91-GHz channel. As well as, the U.S. Joint Storm Warning Heart (JTWC) has been utilizing TROPICS knowledge to center-fix tropical cyclones and determine cloud formations. Specifically, the JTWC crew discovered that the 91-GHz channel was most helpful for figuring out cloud construction. Each NHC and JTWC discovered the TROPICS excessive revisit price to be helpful.
In 2024, the TROPICS functions crew developed the TROPICS Satellite tv for pc Validation Module as a part of the NOAA Hurricane Analysis Division’s annual Advancing the Prediction of Hurricanes Experiment (APHEX). The module coordinated knowledge assortment from NOAA’s Hurricane Hunter plane beneath TROPICS satellite tv for pc overpasses to supply knowledge to calibrate and validate TROPICS temperature, moisture, and precipitation measurements. Utilizing this strategy, the Hurricane Hunter crew tracked Hurricane Ernesto over the central North Atlantic on August 15 and 16, 2024 and used the info to characterize the setting of Ernesto’s rain bands – see Determine 5.
As well as, the crew used TROPICS observations together with GPM constellation precipitation estimates to characterize the lifecycle of Hurricane Franklin, which shaped on August 19, 2023 and underwent a interval of speedy intensification about eight days later. Intensification of the storm, particularly the interval of speedy intensification (45 knot enhance in most winds in 24 hours), occurred in affiliation with a lower in environmental vertical wind shear, a contraction of the radius of most precipitation, and a rise within the precipitation price. Intensification ended with the formation of secondary rainbands and an outward shift within the radius of most precipitation.
Conclusion
TROPICS knowledge supply the potential for bettering forecasts from numerical climate prediction fashions and operational forecasts utilizing its excessive spatial decision and excessive revisit charges that allow enhanced characterization of tropical cyclones globally. Up to now, the TROPICS mission has produced a high-quality combination knowledge file spanning 10 billion observations and 10 satellite tv for pc years, utilizing comparatively low-cost microwave sounder constellations. All L1 (i.e., radiances) and L2 (i.e., geophysical merchandise) knowledge merchandise and Algorithm Theoretical Basis Documents can be found to most of the people via the Goddard Earth Sciences Data and Information Services Center (GES DISC). The GES DISC knowledge mentioned on this article embrace L1 and L2 merchandise for TROPICS-1, TROPICS-3, TROPICS-5, and TROPICS-6.
TROPICS knowledge has aided hurricane observe forecasting for a number of storms as forecasters have used the info at a number of operational tropical cyclone forecast facilities. Information gathered by TROPICS will quickly be complemented by a number of industrial constellations which might be coming on-line to enhance the revisit price and efficiency.
William Blackwell
MIT Lincoln Laboratory
wjb@ll.mit.edu
Scott Braun
NASA GSFC, TROPICS Mission Scientist
scott.a.braun@nasa.gov
Stacy Kish
Earth Observer Workers
Earthspin.science@gmail.com
